Companion container

A companion container (also called a jacket container) is a device used in industrial production, usually used for heating, cooling, reaction, evaporation or other physical and chemical processes.

  • Commodity name： Companion container

Classification:

Key words:

Product Details

  • 産(chǎn)品描述

  • 1.Overview

    A companion container (also called a jacket container) is a device used in industrial production, usually used for heating, cooling, reaction, evaporation or other physical and chemical processes. It has an inner tube and an outer tube in structure. The inner and outer pipes are usually filled with liquid or gas to transfer heat or protect the medium inside the container. Companion containers are widely used in chemical, petroleum, natural gas, food processing and other fields, especially under high temperature and high pressure conditions, which can effectively control the reaction temperature and pressure to ensure the safety and efficiency of the process.

    2.Working principle

    A companion container usually consists of an inner tube and an outer tube. The inner tube is used to store the heated or cooled material, and the outer tube circulates the heating medium (such as steam, hot water, hot oil, etc.) or the cooling medium (such as cooling water or air). The heating or cooling effect of the outer tube heats or cools the material in the inner tube. The design of the container usually takes into account factors such as heat exchange efficiency, fluid flow, pressure and temperature control.

    3.Structural composition

    3.1. Inner tube: used to store heated, cooled or reacted substances.

    3.2. Outer tube: usually used to pass heating or cooling medium to form a sleeve structure.

    3.3. Jacket: The space between the outer tube and the inner tube is usually called a jacket, which is used to conduct heat.

    3.4. Inlet and outlet pipes: used to introduce or discharge heating, cooling medium and reactants or products.

    3.5. Temperature and pressure control device: to ensure that the temperature and pressure of internal substances and media are within a safe range.

    4.Application areas

    4.1. Chemical reaction: In some chemical reaction processes, companion pipe containers are used to keep the reaction temperature constant. Through the temperature control of the external medium, ensure that the temperature of the reactants is suitable for the reaction.

    4.2. Food industry: For example, in the process of food processing, companion pipe containers are used to heat or cool liquid foods (such as milk, juice, etc.) to ensure that the food is processed at an appropriate temperature to prevent overheating or cooling.

    4.3. Oil and gas: In the process of oil refining and natural gas processing, companion pipe containers can be used for temperature control and heat exchange.

    4.4. Pharmaceutical industry: used for temperature control reactions and chemical synthesis of drugs.

    4.5. Cooling and heating process: widely used in cooling towers, heat exchangers and other equipment, through circulating cooling or heating fluid for heat exchange.

    5.Advantages

    5.1. High heat exchange efficiency: Since the external pipe directly heats or cools the substance in the inner tube, the temperature of the internal substance can be efficiently controlled.

    5.2. Strong safety: By controlling the heating or cooling medium in the outer tube, direct contact with high temperature or corrosive media is avoided to ensure the safety of the reaction or treatment process.

    5.3. Wide range of applications: suitable for high temperature and high pressure environments, and can be used in a variety of industrial fields.

    5.4. Accurate temperature control: It can effectively control the temperature and reaction conditions of the substance in the inner tube to ensure the stability and efficiency of the reaction or treatment process.

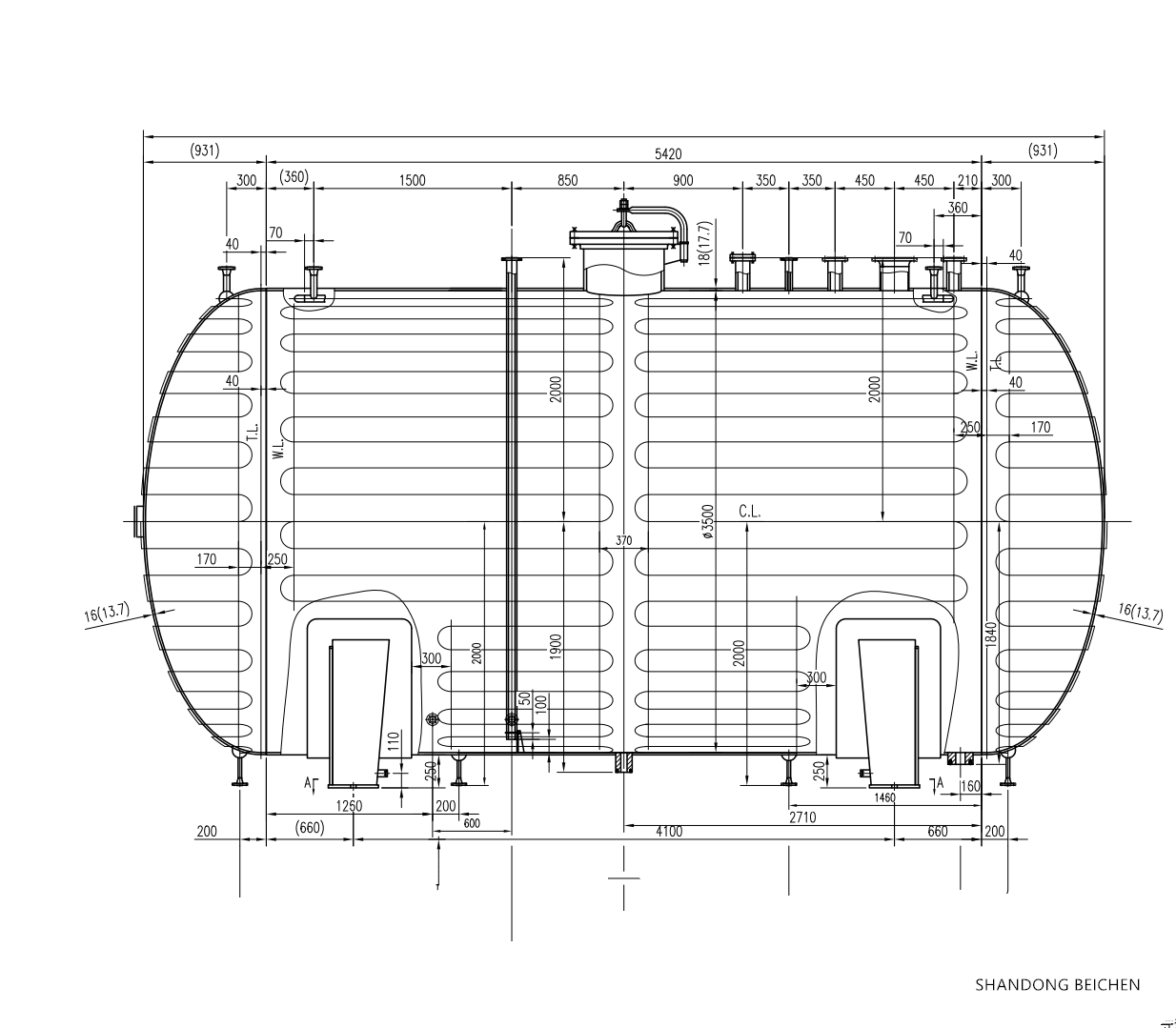

    6.Schematic diagram
